Precision drill bit tubes

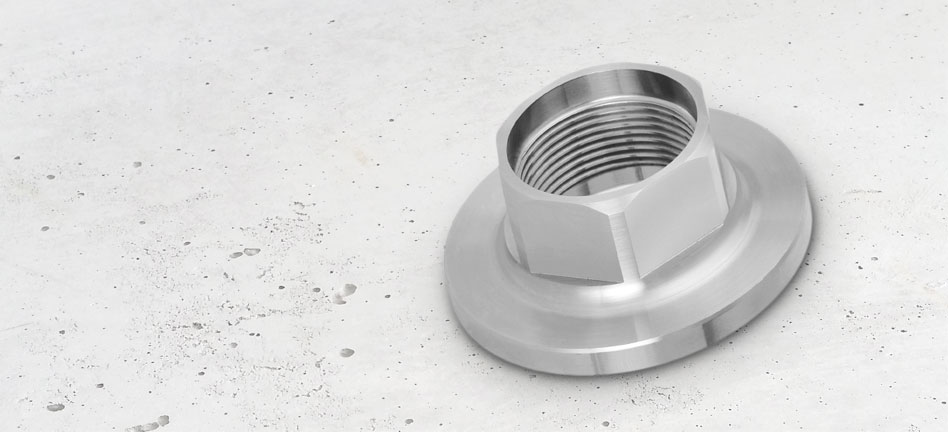

Model: bright, with M41 connector, LASER welded
Model:
→ |
Drill bit tubes blank, connector R½“
SW 22 mm |
|
[]
|
→ |
Drill bit tubes blank, connector 1¼“ UNC SW 41 mm |
|
[]
|
→ |
Drill bit tubes blank, with 3-hole interchangeable flange system |
|
[]
|
→ |
Drill bit tubes blank, with 6-hole interchangeable flange system |
|
[]
|
→ |
Drill bit tubes blank, with M 41 connector, LASER welded |
|
[]
|
→ |
Drill bit tubes blank, with Pixi connector, LASER welded |
|
[]
|
→ |
Drill bit tubes blank, with DUSS connector, LASER welded |
|
[]
|
Model: bright, with M41 connector, LASER welded
Partnumber
|
|
Tube diameter (mm)
|
Wall thickness (mm)
|
Working length (mm)
|
4015450m41 |
|
40 |
1,5 |
450 |
5020450m41 |
|
50 |
2,0 |
450 |
6020450m41 |
|
60 |
2,0 |
450 |
7020450m41 |
|
70 |
2,0 |
450 |
8020450m41 |
|
80 |
2,0 |
450 |
9020450m41 |
|
90 |
2,0 |
450 |
10020450m41 |
|
100 |
2,0 |
450 |
10520450M41 |
|
105 |
2,0 |
450 |
11020450m41 |
|
110 |
2,0 |
450 |
12020450m41 |
|
120 |
2,0 |
450 |
13020450m41 |
|
130 |
2,0 |
450 |
14020450m41 |
|
140 |
2,0 |
450 |
Partnumber
|
|
Tube diameter (mm)
|
Wall thickness (mm)
|
Working length (mm)
|
15025450m41 |
|
150 |
2,5 |
450 |
16025450m41 |
|
160 |
2,5 |
450 |
17025450m41 |
|
170 |
2,5 |
450 |
18025450m41 |
|
180 |
2,5 |
450 |
19825450m41 |
|
198 |
2,5 |
450 |
All other diameters and lengths available, as well as tubes with BBT / M 30 / M 38 / R ½“ also, quotation can follow after drawing request.
