Precision drill bit tubes

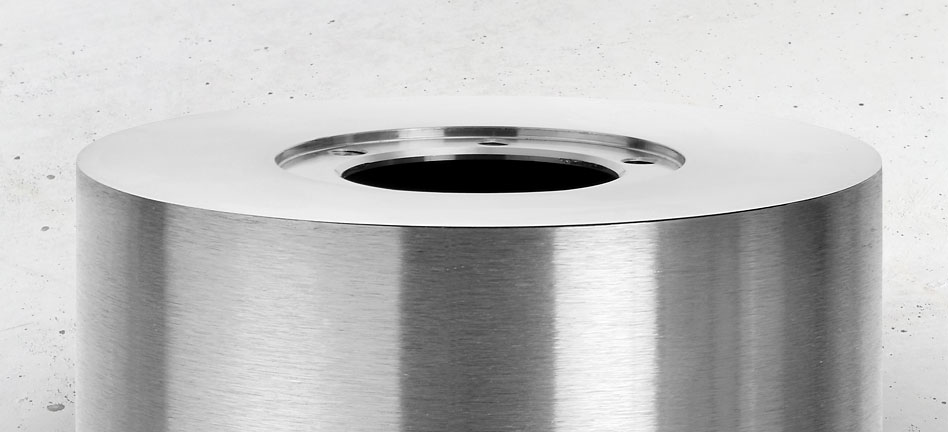

Model: grolled, plasma jet welded, calibrated / Connection: 6 hole changing flange system.
Model:
→ |
Drill bit tubes blank, connector R½“
SW 22 mm |
|
[]
|
→ |
Drill bit tubes blank, connector 1¼“ UNC SW 41 mm |
|
[]
|
→ |
Drill bit tubes blank, with 3-hole interchangeable flange system |
|
[]
|
→ |
Drill bit tubes blank, with 6-hole interchangeable flange system |
|
[]
|
→ |
Drill bit tubes blank, with M 41 connector, LASER welded |
|
[]
|
→ |
Drill bit tubes blank, with Pixi connector, LASER welded |
|
[]
|
→ |
Drill bit tubes blank, with DUSS connector, LASER welded |
|
[]
|
Model: grolled, plasma jet welded, calibrated / Connection: 6 hole changing flange system.
Partnumber
|
|
Tube diameter (mm)
|
Wall thickness (mm)
|
Working length (mm)
|
223254506 |
|
223,0 |
2,5 |
450 |
223304506 |
|
223,0 |
3,0 |
450 |
248254506 |
|
248,0 |
2,5 |
450 |
248304506 |
|
248,0 |
3,0 |
450 |
298254506 |
|
298,0 |
2,5 |
450 |
298304506 |
|
298,0 |
3,0 |
450 |
348254506 |
|
348,0 |
2,5 |
450 |
348304506 |
|
348,0 |
3,0 |
450 |
398254506 |
|
398,0 |
2,5 |
450 |
398304506 |
|
398,0 |
3,0 |
450 |
448304506 |
|
448,0 |
3,0 |
450 |
498304506 |
|
498,0 |
3,0 |
450 |
Partnumber
|
|
Tube diameter (mm)
|
Wall thickness (mm)
|
Working length (mm)
|
548304506 |
|
548,0 |
3,0 |
450 |
598304506 |
|
598,0 |
3,0 |
450 |
648304506 |
|
648,0 |
3,0 |
450 |
698304506 |
|
698,0 |
3,0 |
450 |
748304506 |
|
748,0 |
3,0 |
450 |
798304506 |
|
798,0 |
3,0 |
450 |
848304506 |
|
848,0 |
3,0 |
450 |
898304506 |
|
898,0 |
3,0 |
450 |
948304506 |
|
948,0 |
3,0 |
450 |
998304506 |
|
998,0 |
3,0 |
450 |
1048304506 |
|
1048,0 |
3,0 |
450 |
1098304506 |
|
1098,0 |
3,0 |
450 |
Partnumber
|
|
Tube diameter (mm)
|
Wall thickness (mm)
|
Working length (mm)
|
1148304506 |
|
1148,0 |
3,0 |
450 |
1198304506 |
|
1198,0 |
3,0 |
450 |
1298304506 |
|
1298,0 |
3,0 |
450 |
1398304506 |
|
1398,0 |
3,0 |
450 |
1498304506 |
|
1498,0 |
3,0 |
450 |
All other diameters and lengths available, as well as tubes with BBT / M 30 / M 38 / R ½“ also, quotation can follow after drawing request.
