Precision drill bit tubes
Model: bright, with 3 hole changing flange system, LASER welded
Model:
→ |
Drill bit tubes blank, connector R½“
SW 22 mm |
|
[]
|
→ |
Drill bit tubes blank, connector 1¼“ UNC SW 41 mm |
|
[]
|
→ |
Drill bit tubes blank, with 3-hole interchangeable flange system |
|
[]
|
→ |
Drill bit tubes blank, with 6-hole interchangeable flange system |
|
[]
|
→ |
Drill bit tubes blank, with M 41 connector, LASER welded |
|
[]
|
→ |
Drill bit tubes blank, with Pixi connector, LASER welded |
|
[]
|
→ |
Drill bit tubes blank, with DUSS connector, LASER welded |
|
[]
|

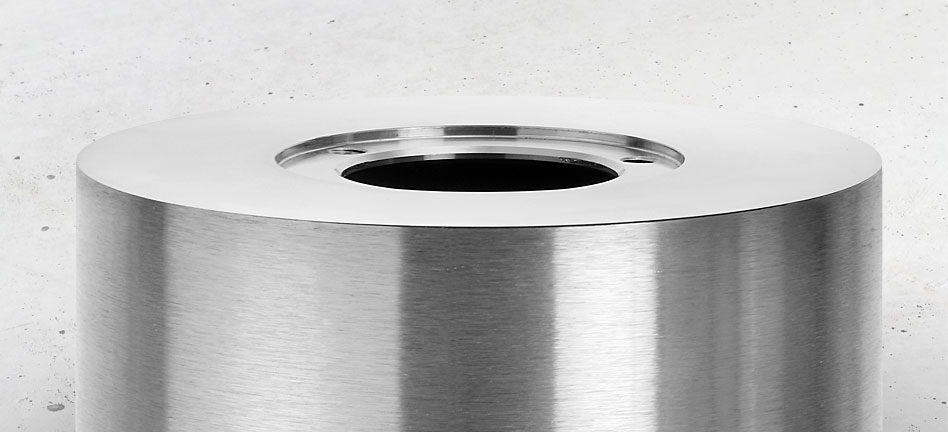

Model: bright, with 3 hole changing flange system, LASER welded
Partnumber
|
|
Tube diameter (mm)
|
Wall thickness (mm)
|
Working length (mm)
|
105203003 |
|
105,0 |
2,0 |
300 |
105204003 |
|
105,0 |
2,0 |
400 |
110203003 |
|
110,0 |
2,0 |
300 |
110204003 |
|
110,0 |
2,0 |
400 |
120203003 |
|
120,0 |
2,0 |
300 |
120204003 |
|
120,0 |
2,0 |
400 |
125203003 |
|
125,0 |
2,0 |
300 |
125204003 |
|
125,0 |
2,0 |
400 |
130203003 |
|
130,0 |
2,0 |
300 |
130204003 |
|
130,0 |
2,0 |
400 |
140203003 |
|
140,0 |
2,0 |
300 |
140204003 |
|
140,0 |
2,0 |
400 |
Partnumber
|
|
Tube diameter (mm)
|
Wall thickness (mm)
|
Working length (mm)
|
150253003 |
|
150,0 |
2,5 |
300 |
150254003 |
|
150,0 |
2,5 |
400 |
156203003 |
|
156,0 |
2,0 |
300 |
156204003 |
|
156,0 |
2,0 |
400 |
160253003 |
|
160,0 |
2,5 |
300 |
160254003 |
|
160,0 |
2,5 |
400 |
170253003 |
|
170,0 |
2,5 |
300 |
170254003 |
|
170,0 |
2,5 |
400 |
180253003 |
|
180,0 |
2,5 |
300 |
180254003 |
|
180,0 |
2,5 |
400 |
198253003 |
|
198,0 |
2,5 |
300 |
198254003 |
|
198,0 |
2,5 |
400 |
Partnumber
|
|
Tube diameter (mm)
|
Wall thickness (mm)
|
Working length (mm)
|
200253003 |
|
200,0 |
2,5 |
300 |
200254003 |
|
200,0 |
2,5 |
400 |
223253003 |
|
223,0 |
2,5 |
300 |
223254003 |
|
223,0 |
2,5 |
400 |
248253003 |
|
248,0 |
2,5 |
300 |
248254003 |
|
248,0 |
2,5 |
400 |
255253003 |
|
255,0 |
2,5 |
300 |
255254003 |
|
255,0 |
2,5 |
400 |
All other diameters and lengths available, as well as tubes
with BBT / M 30 / M 38 / R ½“ also, quotation can follow after drawing request.
Catalogue download
Please download our product catalogue:
TDBS catalogue (PDF file)
