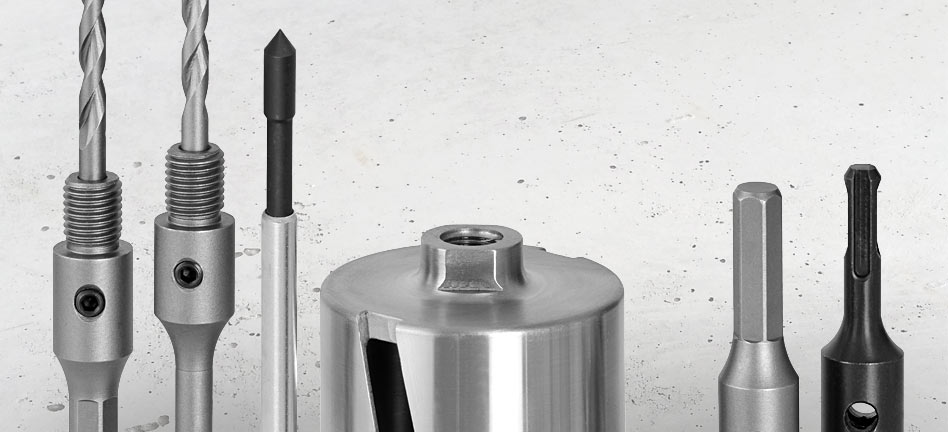

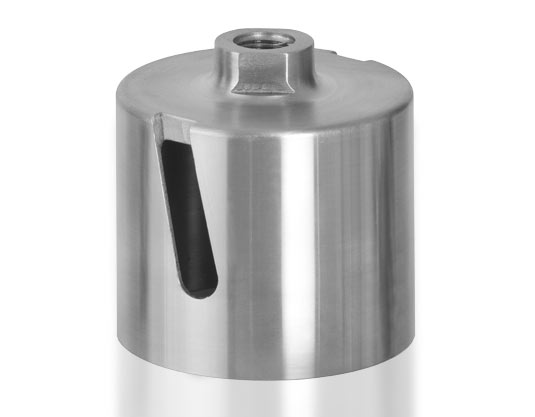

| → | Accessories for dry drilling crown bodies |
 ] |
|
Partnumber |
|
Dimension |
| DK302062 | 30,0 x 2,0 x 62 mm | |
| DK352062 | 35,0 x 2,0 x 62 mm | |
| DK402062 | 40,0 x 2,0 x 62 mm | |
| DK452062 | 45,0 x 2,0 x 62 mm | |
| DK502062 | 50,0 x 2,0 x 62 mm | |
| DK552062 | 55,0 x 2,0 x 62 mm | |
| DK602062 | 60,0 x 2,0 x 62 mm | |
| DK662062 | 66,0 x 2,0 x 62 mm | |
| DK702062 | 70,0 x 2,0 x 62 mm | |
| DK752062 | 75,0 x 2,0 x 62 mm | |
| DK802062 | 80,0 x 2,0 x 62 mm |
|
Partnumber |
|
Dimension |
| DK852062 | 85,0 x 2,0 x 62 mm | |
| DK902062 | 90,0 x 2,0 x 62 mm | |
| DK1002062 | 100,0 x 2,0 x 62 mm | |
| DK1052062 | 105,0 x 2,0 x 62 mm | |
| DK1102062 | 110,0 x 2,0 x 62 mm | |
| DK1202062 | 120,0 x 2,0 x 62 mm | |
| DK1252062 | 125,0 x 2,0 x 62 mm | |
| DK1302062 | 130,0 x 2,0 x 62 mm |
|
Partnumber |
Item |
Dimension |
|
| M16100 |
Hexagon mount with screw, browned |
M16 x 100 mm | |
| M16100K |
Hexagon mount tapered with wedge, browned |
M16 x 100 mm | |
| M16100SDS |
S D S - mount with screw, browned |
M16 x 100 mm | |
| M16100KSDS |
S D S - mount tapered with wedge, browned |
M16 x 100 mm | |
| BZ1208 |
Centre drill „LASER“ |
8,0 x 120 mm | |
| BK12065 |
Centre drill tapered 1:20 |
6,5 x 120 mm | |
| M16ZR12Z |
Adaptor M16 tenon x R ½" tenon |
||
| M16Z58M |
Adaptor M16 tenon x ⅝"-16UNG bushing |
||
| M16ZM18M |
Adaptor M16 tenon x M18 x 2,5 bushing |
||
| M16ZM22M |
Adaptor M16 tenon x M22 bushing |
|
Partnumber |
Item |
|
| M16MM1815Z |
Adaptor M16 bushing x M18 x 1,5 bushing |
|
| M16MM1815Z |
Adaptor M16 bushing x M18 x 1,5 tenon |
|
| M16ZM1815M |
Adaptor M16 tenon x M18 x 1,5 bushing |
|
| M16MM1825Z |
Adaptor M16 bushing x M18 x 2,5 tenon |
|
| M16ZR12M |
Adaptor M16 tenon x R ½" bushing |
|
| M1815ZR12ZK |
Adaptor M18 x 1,5 tenon x R ½" bushing with wedge |
|
| M1815ZR12ZZ |
Adaptor M18 x 1,5 tenon x R ½" bushing with screw |
|
| R12100 |
Hexagon mount x R ½" bushing |
Catalogue download
Please download our product catalogue:
